Landing Valves & Breeching Inlets

Home / Landing Valves & Breeching Inlets

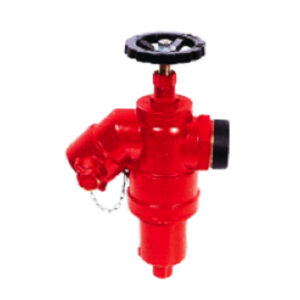

Falcon Landing Valves are manufactured to BS 5041 and are available in 65 mm Ø female thread or flange end inlet and female instantaneous to BS 336 outlet. Falcon also produces various types of landing valves such as screw oblique landing valves, flanged oblique landing valves, flanged right angle landing, flanged straight through landing valve and double landing valve.

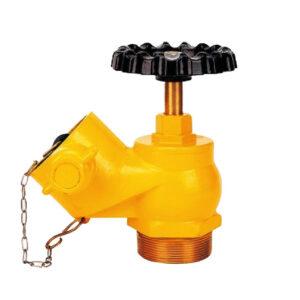

Falcon High Pressure Reducing Valves are manufactured to BS 5041. They are specially designed to ensure uniform firefighting pressure to be maintained at all levels located in varying storeys in high-rise buildings. The pressure control is not affected by the difference in inlet pressures, which may occur at differing floor level.

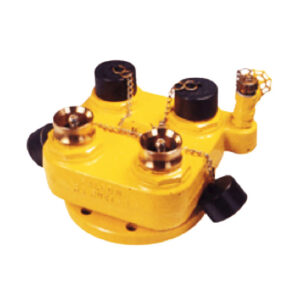

Code No B102 Specification

Body: Spheroidal Graphite Iron to BS 2789
Inlet Connections: LG2 (Gunmetal) to BS 1400
Blank Cap: Plastic Blank Cap for Drain
Valve: CZ 122 to BS 2872
Drain Valve: CZ 122 to BS 2872
Chain: Stainless Steel

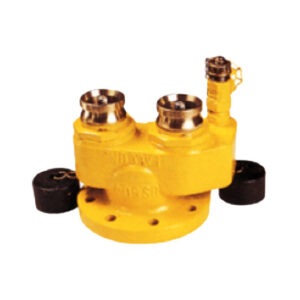

Code No B104 Specification

Body: Spheroidal Graphite Iron to BS2789
Inlet Connections: LG2 (Gunmetal) to BS 1400
Blank Cap: Plastic
Valve: CZ 122 to BS 2872
Drain Valve: CZ 122 to BS 2872
Chain: Stainless Steel
